    RV 20PP Valve Refacer

    Feb. 26, 2008
    Related To: Peterson Wash Blast
    Rv20ppvalverefacer 10099404

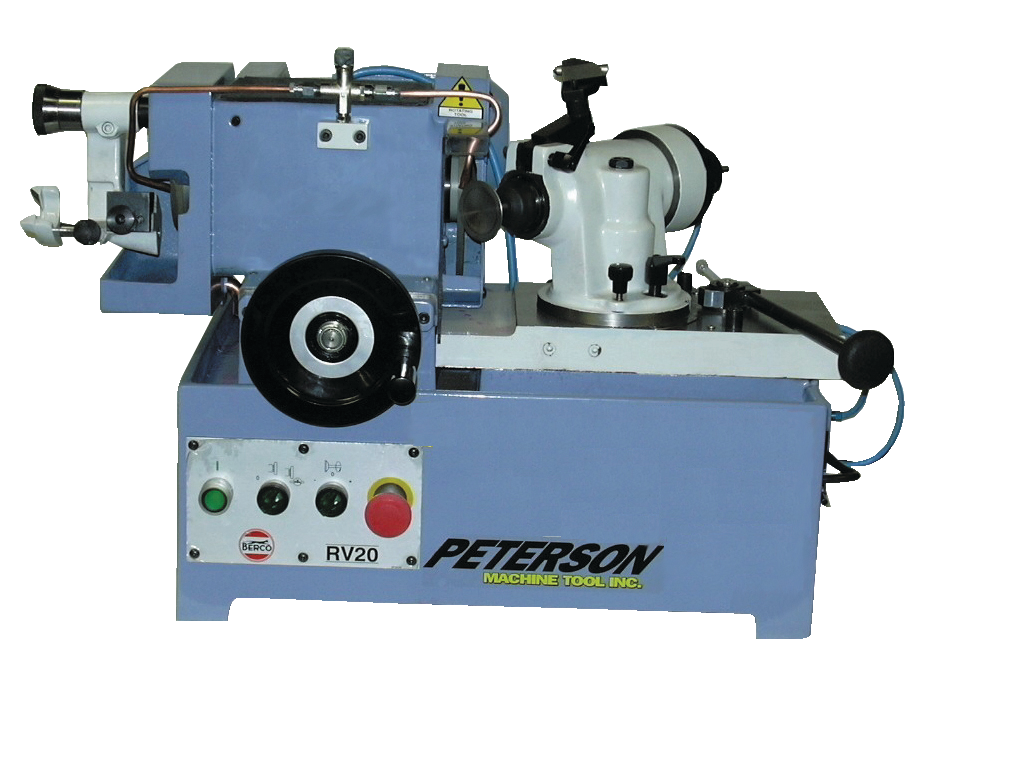

    Delivering Precision and Flexibility Peterson Machine Tools introduces its newest addition to the company's complete line of engine rebuilding equipment. The RV 20PP Valve Refacer is semi-automatic and designed to reface medium and large size valves ranging in stem size from 0.138" to 0.787". The RV 20PP also features:

    • An electropneumatic-clamping device that releases the valve and stops the rotation, then grips and rotates the valve in an automatic sequence.
    • A 2 speed drive rotation system that allows for valve rotation speeds of 75 or 150 rpm.
    • The workhead can be set to any position from 0-99 degrees quickly, due to a fast action locking and release system.
    • 5 collets ranging in size from 4.5mm to 15.5mm.
    • A cooling pump, reservoir and valve end grinding device.
    • A special diamond holder for quick wheel dressing and V-support for valve stem chamfering.
