Portable Power Distribution System, No. MGL-480-15K-120-208Y-12X20-2X30

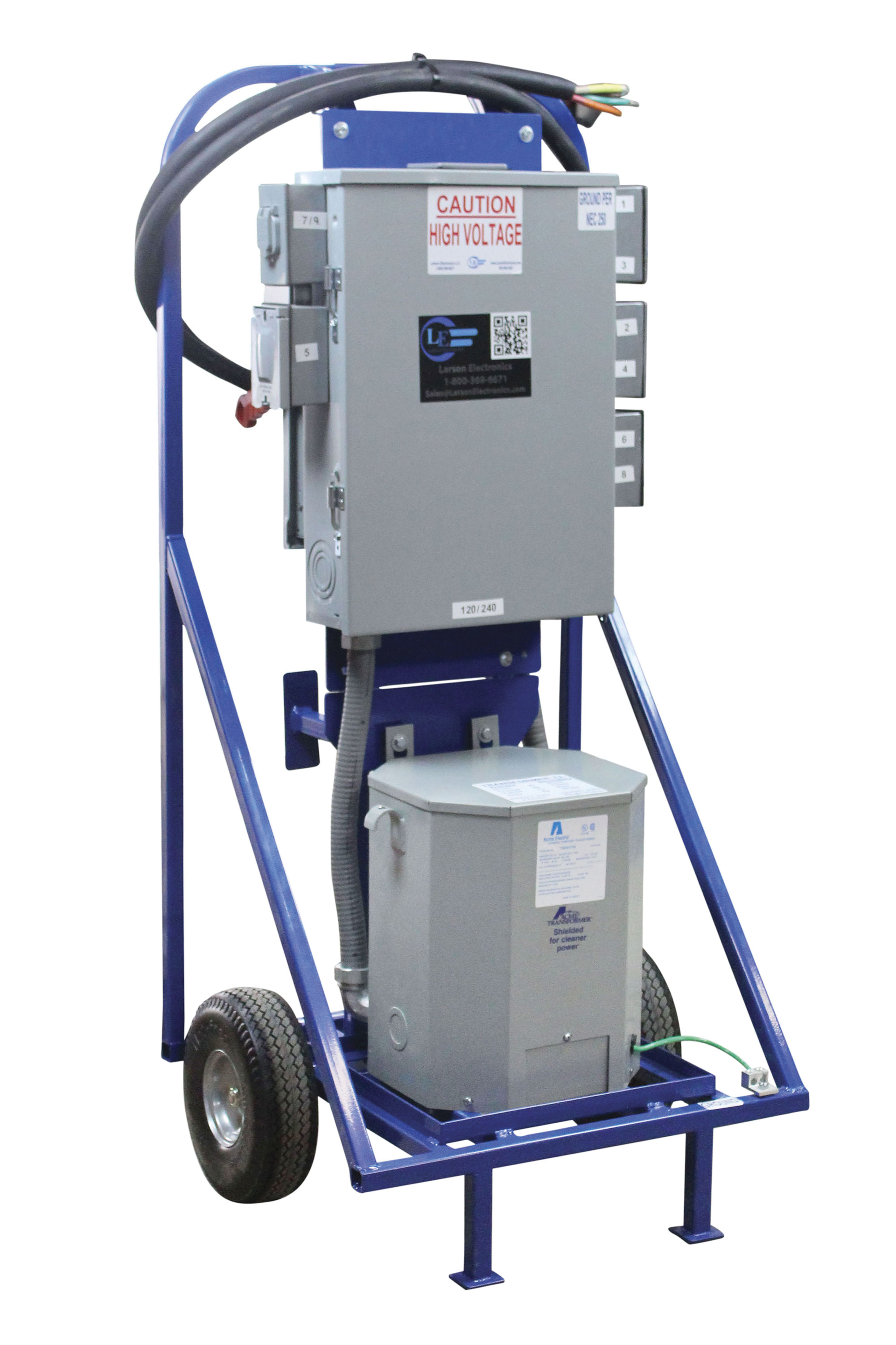

The Larson Electronics Portable Power Distribution System, No. MGL-480-15K-120-208Y-12X20-2X30, converts 480V AC three-phase electrical current to 120V AC and 208Y volts AC. The system allows operators to tap into power sources independently of the work area. With 20' of Type W line-in power cord included, the transformer is designed to operate with 480V, and then it is stepped down to single phase 120V AC and three phase 208Y volts AC. The transformer and distribution assembly is mounted to a standard steel dolly cart style frame, which offers two rubber tires and a center point lift eye for lifting with cable or chain hooks.  This power distribution system is NEMA 3R rated.
