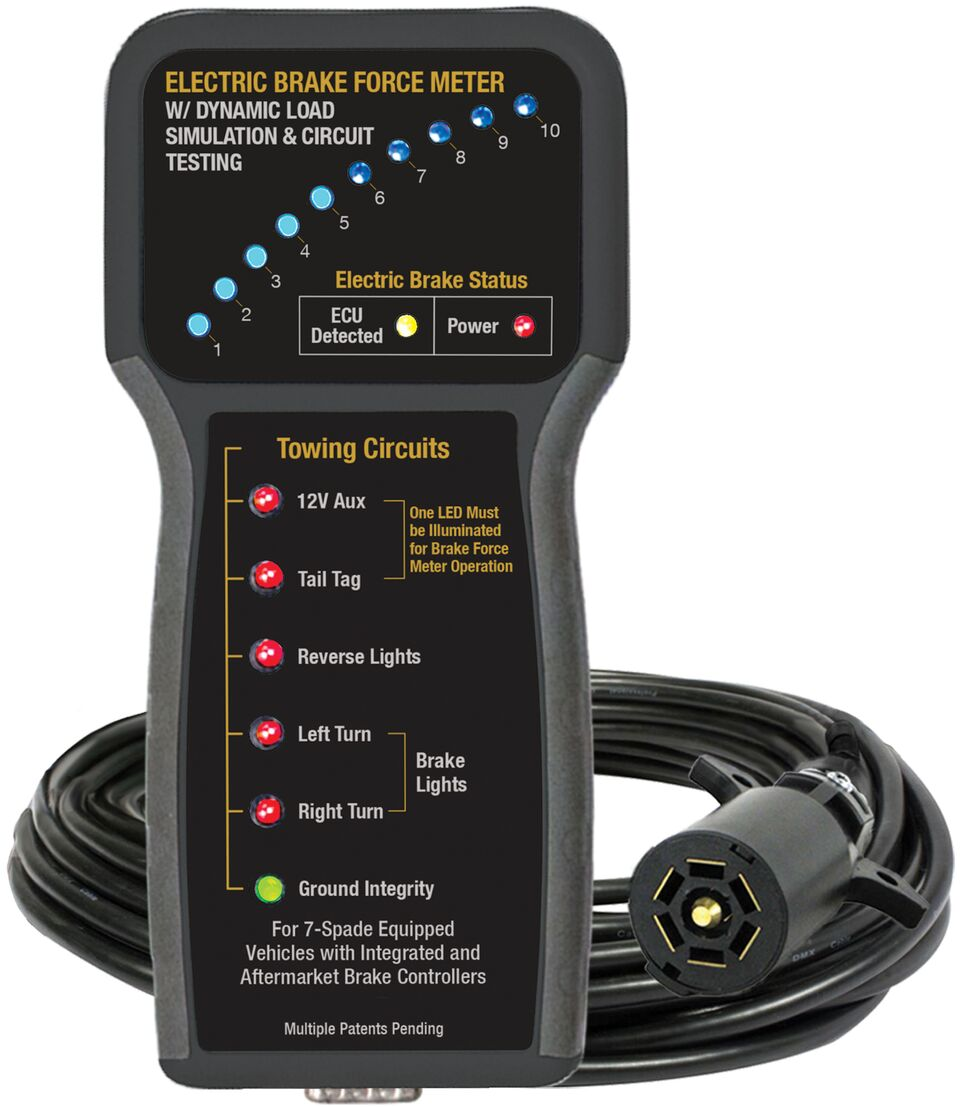

Electric Brake Force Meter with Dynamic Load Simulation and Circuit Testing, No. 9107A

The Electric Brake Force Meter with Dynamic Load Simulation and Circuit Testing tool, No. 9107A, from Innovative Products of America (IPA) utilizes patent-pending, dynamic load simulation technology to sync with a vehicle's trailer detection system, allowing the technician to quickly troubleshoot integrated and aftermarket brake controllers without needing a trailer. The tool displays real-time, brake-force output gain and timing, as well as truck-side tow circuit indication. Designed for 7-spade equipped vehicles, the tool automatically recognizes the electronic signature of both integrated (ITBC) and aftermarket trailer brake controllers. It simulates a trailer load and displays real-time, brake-controller output gain and application timing. In addition to the electric brake monitoring, the tool is ideal for troubleshooting all truck-side tow circuits, e.g., tail lights, turn signals, 12V+, reverse and ground condition, etc. The 25ft. cable allows for one-person, in-cab testing and is easily stowed inside the provided soft case.
