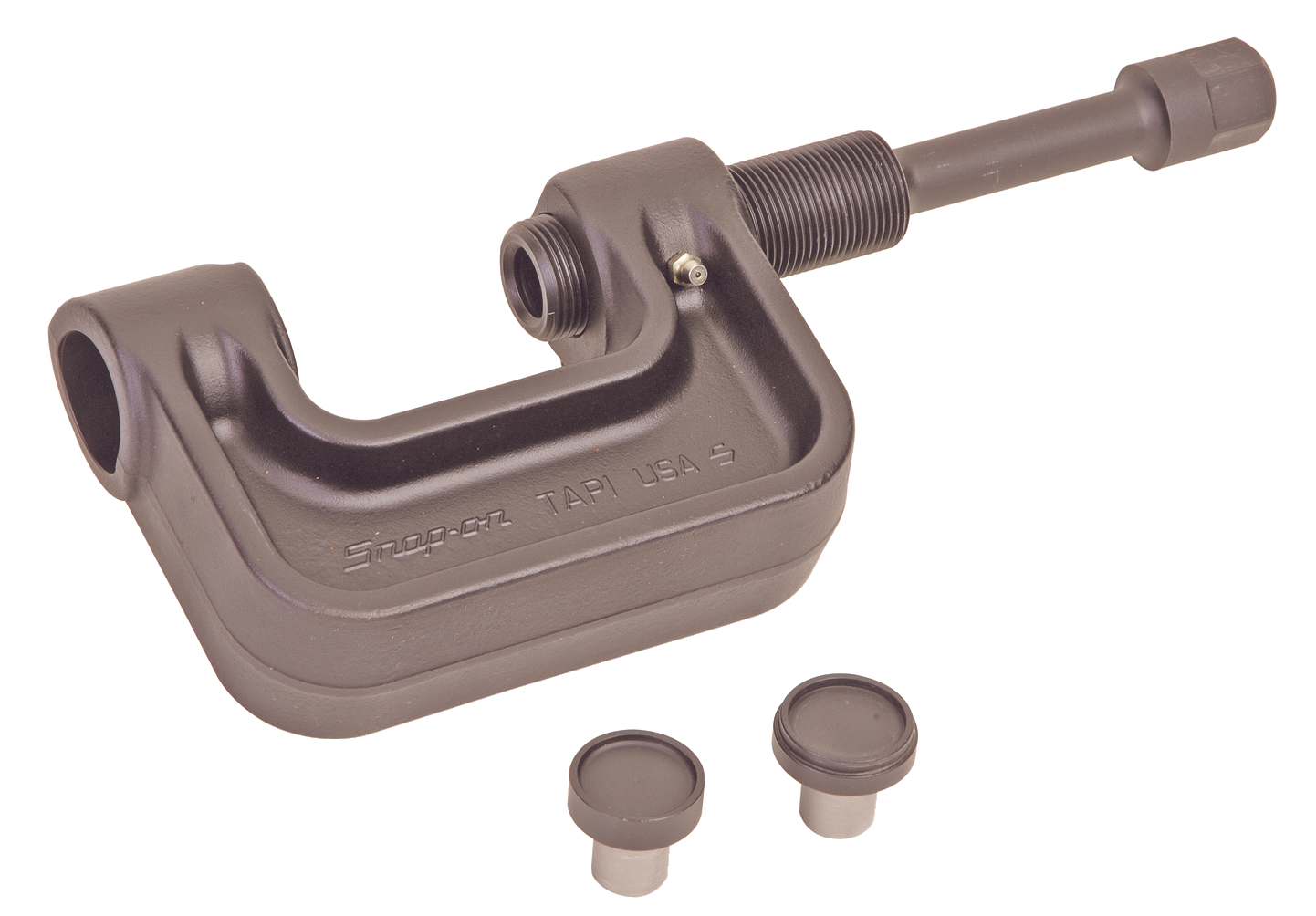

Snap-on's TAP1 Truck Anchor Pin Press helps you save time, increase safety and improve performance with:
A design that allows you to remove and replace pins and bushings without removing the hub, cutting job times by as much as 25 minutes.
A design that's three times stronger and generates 30 percent more force than most competitors, according to Snap-on.
Pressure pad retaining rings that hold the pads firmly in place. This helps provide more stability and control.
Interchangeable pressure pads that allow for the removal of a bushing alone or at the same time as the pin, so technicians can save time by not having to switch back and forth between tools.
A beveled design that ensures proper tool alignment, clearance around rivets on tamped brake spiders and maximum force transfer
A high-strength yoke and heavier 1-1/4" x 12" pressure screw threads to help move difficult pins or bushings.
A reduced diameter shank to clear the hub.
Zerk grease fittings to lubricate the tool and flush out any dirt. The tool is specifically designed to remove brake anchor pins and bushings on 16-1/2" Q-type S-cam tractor and trailer brake systems from Dana-Spicer, Arvin-Meritor, Eaton, Timkin and Fruehauf.
