Nissan ABS DTC

March 5, 2021

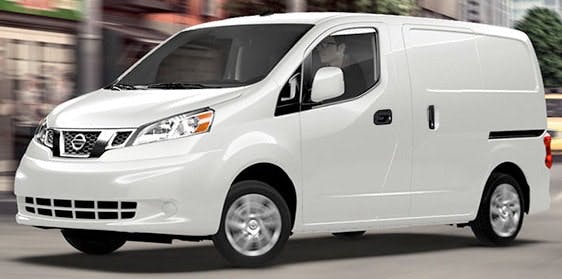

This bulletin applies to 2013-2017 Nissan NV 200 vehicles. When diagnosing for DTC C1130 (engine signal), ECM related DTCs (P-codes) must be diagnosed, repaired and erased first before addressing the C1130 code.

Information courtesy of Mitchell 1

Mike Mavrigian

DTC C1130 is an ABS DTC that indicates an output signal of the ECM is not recognized. Absent or incorrect ECM signals that are indicated by corresponding P-codes may trigger C1130 in the ABS control unit. Some vehicle features that can be affected by absent oe incorrect ECM signals are forward emergency braking (FEB), intelligent cruise control (ICC) and VDC/ABS/TCS.
