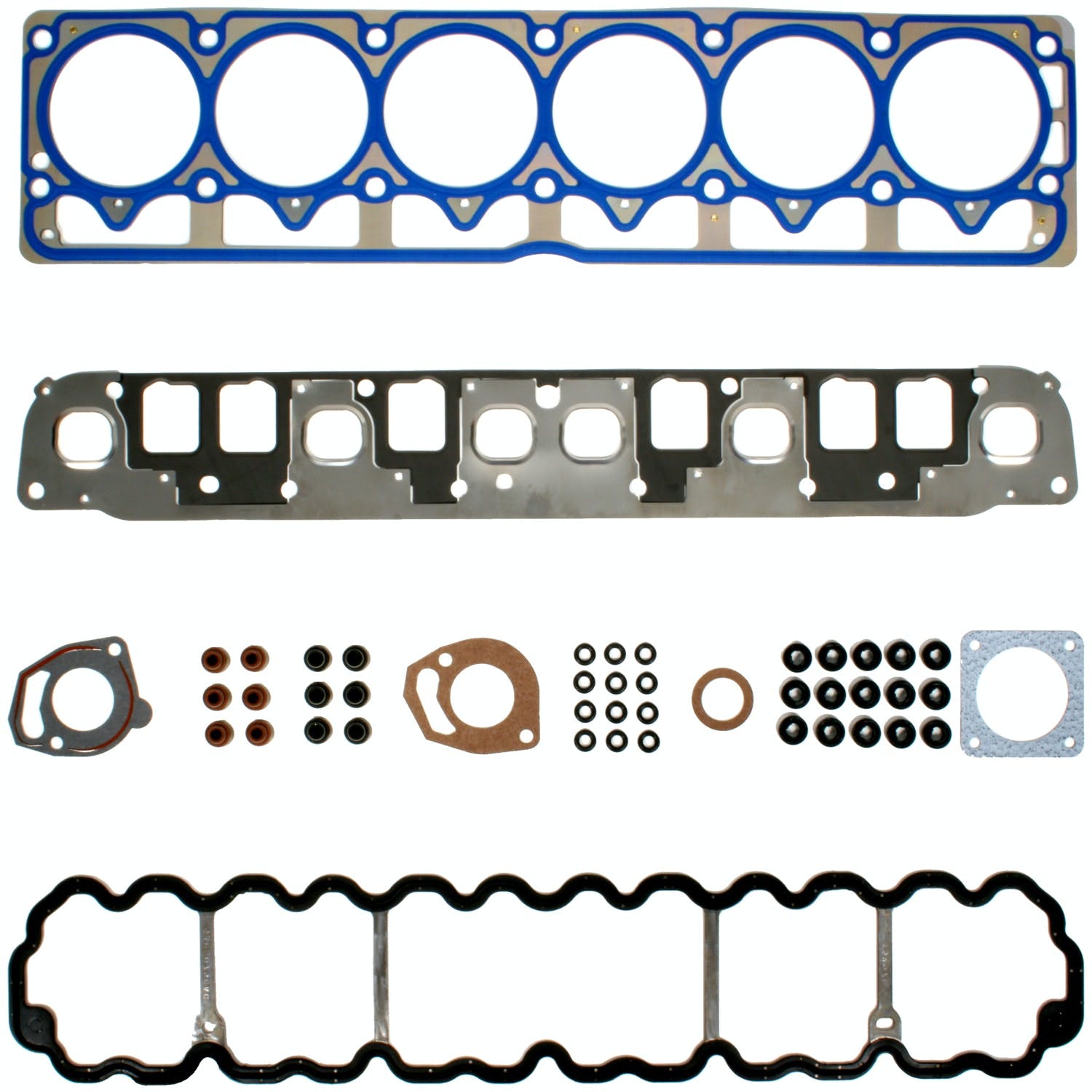

The Mahle Original brand head gasket set for 1999 – 2006 Jeep 4.0 liter, 6-cylinder engines from Mahle Aftermarket Inc. features OE quality multi-layer steel (MLS) construction for both the head gasket and the intake/exhaust manifold gaskets.
The company says the set (part no. HS5713A) includes all the parts – 46 pieces in total – that technicians need to do the job properly.
The head gasket in the Jeep head set uses 301 full hard stainless steel with an embossment on each layer at critical sealing areas for maximum sealing, according to Mahle. The spring steel layers provide tension when compressed, keeping the joint tight and preventing the seal from being blown out.
The company says the MLS construction used in Mahle Original gaskets is superior to composite gasket materials that do not match the OE design. The intake/exhaust manifold gasket in the Jeep head set uses different sealing materials for the exhaust and intake manifolds because they seal dissimilar metals with different thermal expansion characteristics.
The exhaust portion of the manifold gasket uses two layers of embossed tempered 301 stainless steel.
The intake portion uses a single layer of embossed and tempered metal that is rubber coated and PTFE coated.
“You can see the difference with Mahle Original gasket sets,” says Jon Douglas, general manager of Mahle Aftermarket North America. “Mahle Original gaskets match the OE gaskets for form, fit and function. Plus, we include everything the technician needs to get the job done.”
Mahle Aftermarket announced on June 30 that the new brand name for the gasket line would be Mahle Original gaskets; these will be the same Articles sold in North America since well before Mahle Aftermarket acquired the engine parts division from Dana Corp. in 2007.
The company says the Mahle Original gasket line will continue to offer the best coverage in the aftermarket across domestic, Asian, European, and heavy-duty applications. “The company that has been behind this gasket line is now the brand that is on them,” says Douglas.
The Mahle Original gasket offering includes nearly 9,000 part numbers, covering 900,000 applications, with over 1,200 exclusive part numbers not available from any other aftermarket supplier.
For more information about Mahle Aftermarket and its brands, visit www.mahle-aftermarket.com.
