Solved: Detecting a Jeep Grand Cherokee's Communication Faults
A 2015 Jeep Grand Cherokee 3.6L suffered from communication network faults that would leave the electronically shifted transmission in 'PARK.'
Get caught up with all the details on this vehicle diagnostic case.
Given this information, what would you do next?
- Replace the least expensive node first (TCM or ESM)
- Replace both the ESM and TCM
- Isolate nodes individually and recapture CAN waveforms
- Isolate nodes individually and re-scan for DTCs

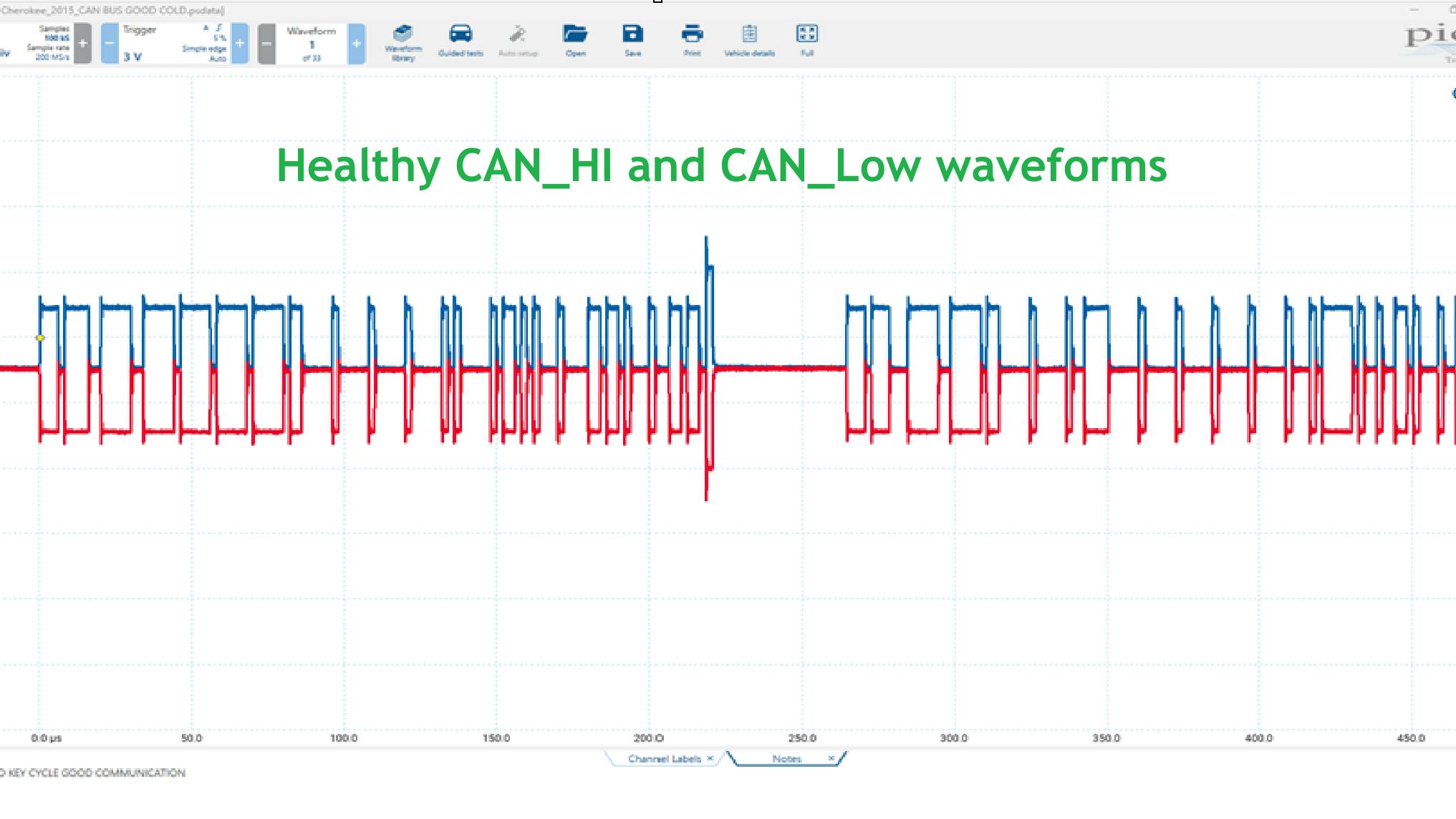

For those of you who chose answer No. 3, congratulations! The combination of the DTCs stored and the topology isolated the fault to one of only two nodes. Isolation of the most accessible node was carried out and the anomaly was eliminated from the CAN waveforms, leading to proper communication, and without DTCs.
Answer No. 1 is incorrect as it is rarely prudent practice to replace parts simply due to the cost. Replacing the nodes arbitrarily is not prudent, especially considering there are other tests to be carried out.
Answer No. 2 is incorrect as there is only one faulty node present and considering the cost as well, this would set the customer back financially for no good reason.
Answer No. 4 holds merit but the true data reflecting the symptom is the skewed CAN bus waveforms. The DTCs are simply a result of the corrupted bus. The more valuable reflection of a correct repair (or bypassing of the fault) is to monitor for healthy CAN bus waveforms.
Be sure to read the next Motor Age issue for the answer to this month’s challenge and what was discovered!
