Stopping the Chevy Brake Booster Vacuum Leak

Nov. 16, 2022

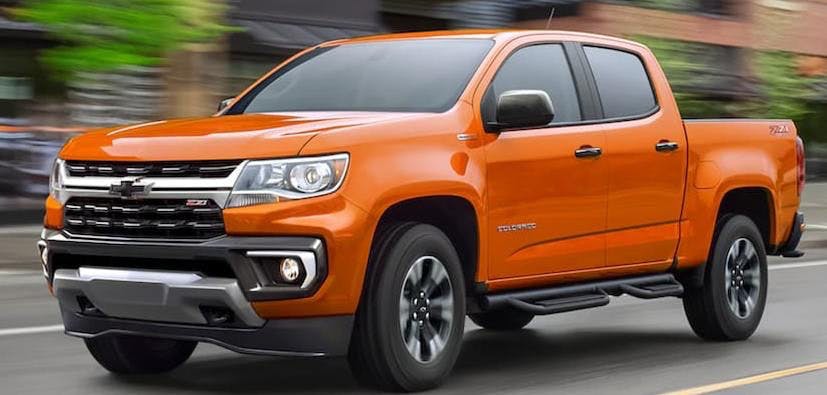

This bulletin applies to 2015-2021 Chevy Colorado vehicles. The brake booster may have a vacuum leak, possible hiss noise and/or DTC C0299 stored in the ECM. This is possibly caused by the vacuum pump leaking oil into the booster.

Information courtesy of Mitchell 1,

Mike Mavrigian

Inspect inside the vacuum hose and booster for a sticky-feeling substance on the rubber. If this is present, this is a likely indication that the vacuum pump is leaking oil. Replace the pump and hose along with the booster if needed.
