The Fix to Jaguar's Rattle Noise

Dec. 12, 2022

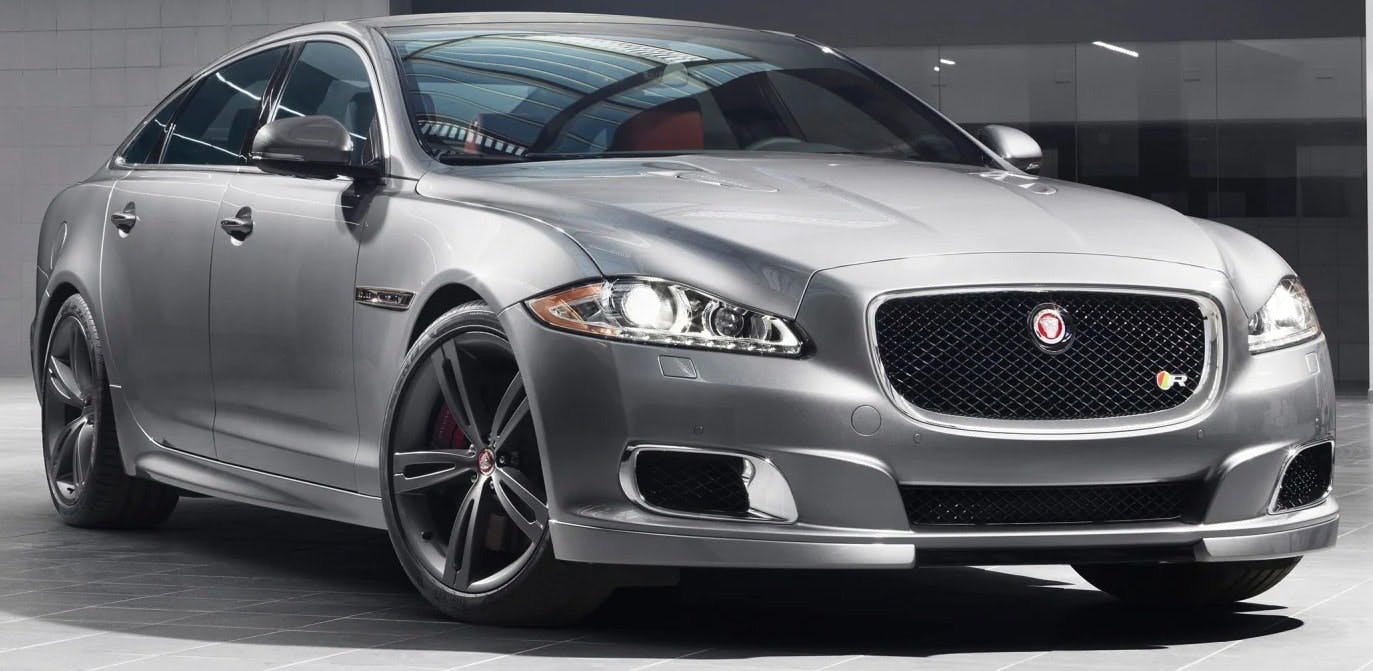

A clattering/knock/rattle noise may be heard from the engine in 2014 Jaguar F-Type, 2013-2015 XF and XJ vehicles equipped with a 3.0L supercharged engine. This may be caused by a torsional isolator and/or the torsional isolator spring support shaft wear, causing excessive backlash in the supercharger drive.

Information courtesy of Mitchell 1,

Mike Mavrigian

Remove the supercharger drive belt and rotate the supercharger pulley by hand. If there is a clunk/knock noise or significant free play when turning the pulley before the rotors start to turn, install a supercharger spring isolator kit (see TOPIx workshop manual, section 303-12).

If any of the following symptoms are present, replace the supercharger assembly:

- The pulley does not rotate freely (sticks/roughness felt in bearing/difficult to move)

- The blades are damaged

- The customer reported excessive “whine” noise

Supercharger spring isolator kit............C2D40425

Gasket (two)..............................................C2Z17249
