Tips for Installing Kia Battery Sensor

This bulletin provides information relating to all Kia vehicles equipped with a battery sensor. Do not install an additional ground cable to the battery on any vehicle equipped with a battery sensor.

Information courtesy of Mitchell 1

Nov. 20, 2023

2 min read

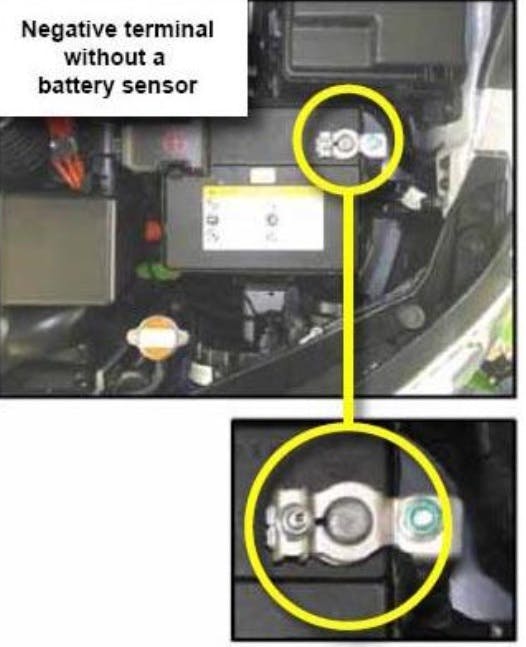

Example of the negative terminal without a battery sensor.

This bulletin provides information relating to all Kia vehicles equipped with a battery sensor. Do not install an additional ground cable to the battery on any vehicle equipped with a battery sensor. Installing an additional ground cable to a battery-negative terminal may cause the battery sensor to incorrectly recognize the battery state (charged/discharged) and temperature information.

The battery sensor which is embedded in the battery negative terminal transmits battery voltage and temperature information to the ECM. The ECM controls the alternator voltage output necessary for the various vehicle electric units by duty cycle based on signals received from the battery sensor. Also, on some vehicles with the ISG (idle stop & go) function, the idle stop and auto start are determined by the battery state of charge (SOC) and state of health (SOH) information received from the battery sensor.

If an additional ground cable is installed, the battery sensor may incorrectly register that the battery is in a discharged state despite a normal battery condition. This may cause the battery sensor to transmit incorrect information to the ECM, alternator voltage output and ISG control, resulting in improper operation of various systems and components, as well as possible setting DTCs U1111 (battery sensor fault detected by ECM), U1112 (LIN communication error), P0620 (alternator control circuit), P2501 (AMS voltage rationality), P2502 (AMS charging system voltage), and/or P2503 (AMS no battery charge).
