TSBs

Replacing Hyundai Side Joint

Oct. 9, 2023

According to Hyundai, it is not necessary to replace the complete driveshaft assembly when servicing the driveshaft or CV joint on a 2011-2014 Hyundai Sonata.

Information courtesy of Mitchell 1

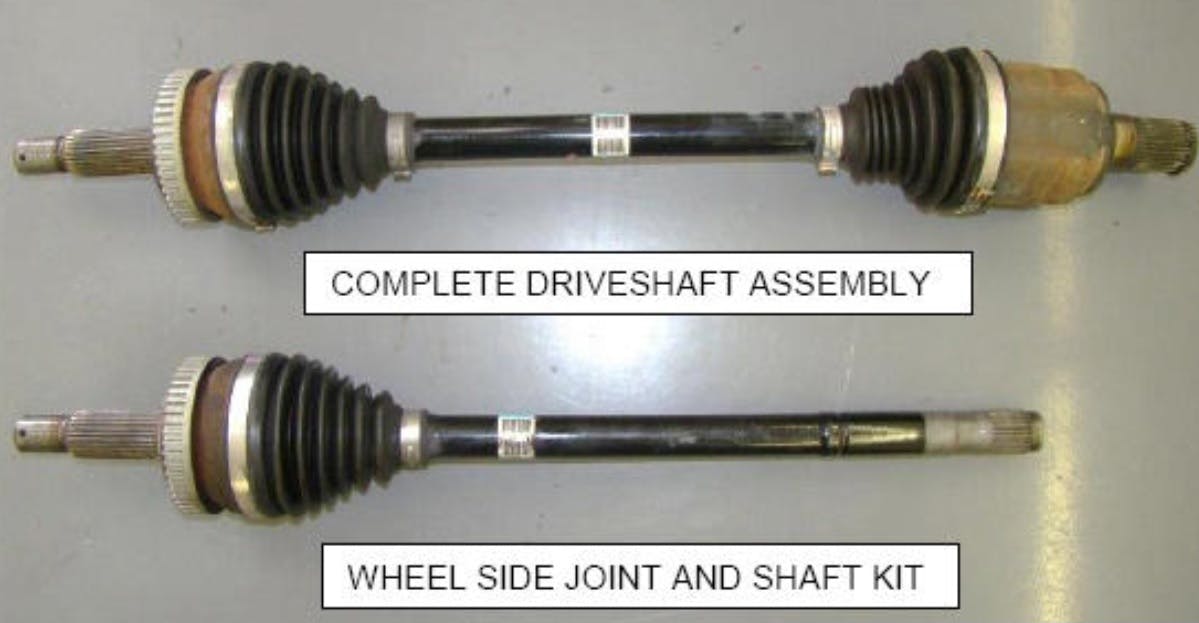

Hyundai offers shaft kits if a complete assembly replacement is not required.

According to Hyundai, it is not necessary to replace the complete driveshaft assembly when servicing the driveshaft or CV joint on a 2011-2014 Hyundai Sonata. Instead, you can replace the appropriate side joint and shaft kit.

ENGINE WHEEL SIDE JOINT/SHAFT KIT P/N

2.4L with AT......................left ....................10232-979

2.4L with AT....................right...................10251-072

2.4L with MT...................left.....................49580-3S000

2.4L with MT...................right...................49580-3s070

2.0L with AT....................left.....................49580-3Q700

2.0L with AT....................right...................49580-3Q750
