Hyundai Harness

Aug. 5, 2019

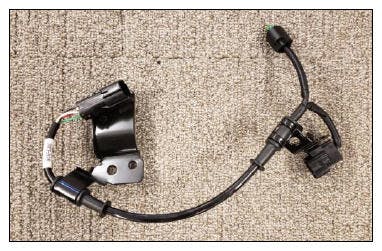

This bulletin applies to 2015 Hyundai Genesis vehicles equipped with electronic control suspension (ECS). A shock absorber extension wiring harness is now available separately from the ECS shock assembly.

This bulletin applies to 2015 Hyundai Genesis vehicles equipped with electronic control suspension (ECS). A shock absorber extension wiring harness is now available separately from the ECS shock assembly.

The ECS harness may be routed behind the wheel liner. Remove the liner to gain access. Disconnect the connectors on the extension harness. Remove all mounting bolts to remove the extension harness and remove the harness. Install the new harness in reverse order.

Harness location .................. P/N

Left front................................56190

Right front..............................56192

Left rear.................................56190

Right rear...............................56192
