Loose Jag Connection

March 16, 2020
This bulletin applies to 2016 XF and XE vehicles equipped with the Ingenium 14 2.0L diesel engine. A customer may report that the engine warning lamp is illuminated.

This bulletin applies to 2016 XF and XE vehicles equipped with the Ingenium 14 2.0L diesel engine. A customer may report that the engine warning lamp is illuminated.

Fault codes P2564-16, P0045-13, P0048-12, P0047-11 or P0046-77 may also be present.

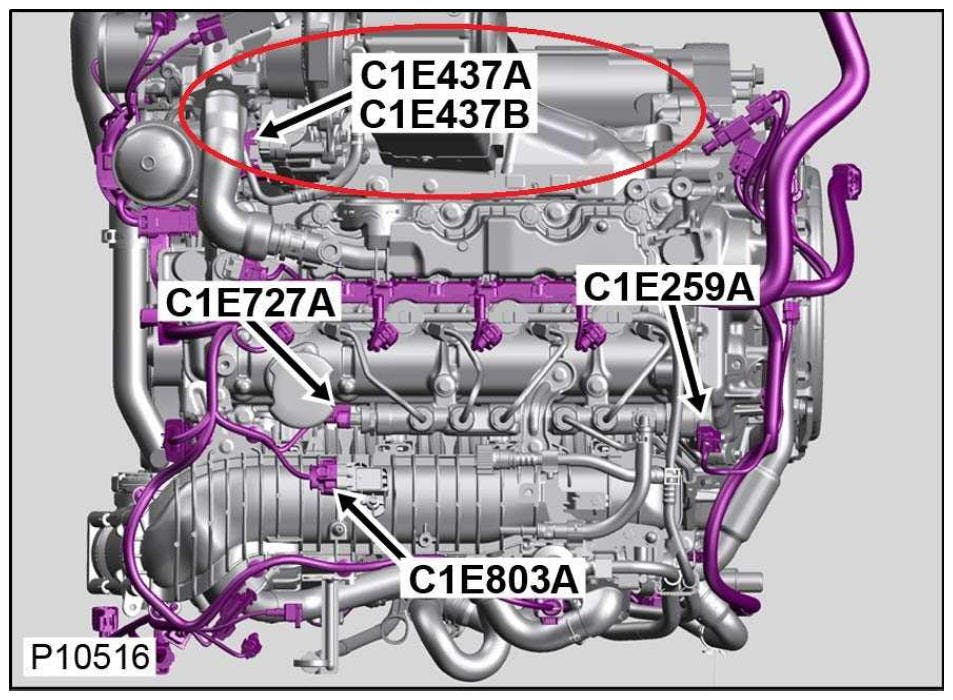

A possible partial latching of the turbocharger actuator harness connector may be the cause. Affected connector numbers are C1E437A and C1E437B.

If any of the DTCs are found present in the engine control module, check the connector latching before carrying out further repairs. If partial latching is found, correct the condition, clear fault codes and recheck.
