Controlling BMW Chassis System

Oct. 17, 2022

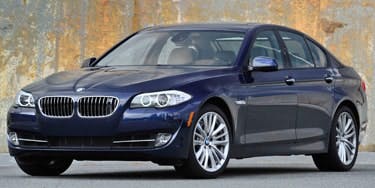

This bulletin applies to 2012 BMW 528xi models. The warning lamps for DSC/ABS and brake warning may be illuminated. There may also be a warning in the control display for “Chassis Control System Failure.”

Information courtesy of Mitchell 1,

Mike Mavrigian

DSC:

D36D44....signal error longitudinal torque distribution

48097D.....transfer case clutch position open

LMV:

440108...........control unit internal error

44010F...........control unit internal error

The cause is a software calibration error in the LMV. Program the vehicle using ISTA/P 2.47.2 or later.
