Corrosion Causing Toyota Drivability Issues

April 15, 2022

Corrosion and water in the A43 ECM connector of Toyota Highlanders or the A9 inverter water pump connector on Hybrid models is due to poorly sealed or damaged aftermarket windshield deicer harnesses.

Information courtesy of Mitchell 1,

Mike Mavrigian

65b85c45db0dd7001ee1e922 Toyotatsbcorrosion

Some 2014-2018 Toyota Highlander and Highlander Hybrid vehicles may exhibit one or more of the following conditions:

Various drivability concerns
Low or no fuel pressure
DTCs including but not limited to P1603, P1604, P1605, P0171, P0300, P0302, P0304 and U0100
Some 2014-2018 Highlander Hybrid vehicles may exhibit DTC P134A.

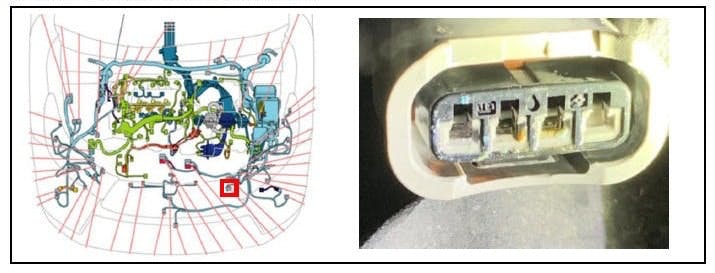

These conditions may be caused by corrosion/water in the A43 ECM connector (Highlander) or the A9 inverter water pump connector on Hybrid models. The corrosion in these connectors is due to poorly sealed or damaged aftermarket windshield deicer harnesses.
