Examine Jeep Muffler for No Weep Hole

    June 7, 2023
    Some owners of 2019-2020 Jeep Renegade, 2017-2018 Compass and 2015-2018 Renegade vehicles may describe a crank-no-start condition in freezing temperatures.
    Mitchell 1

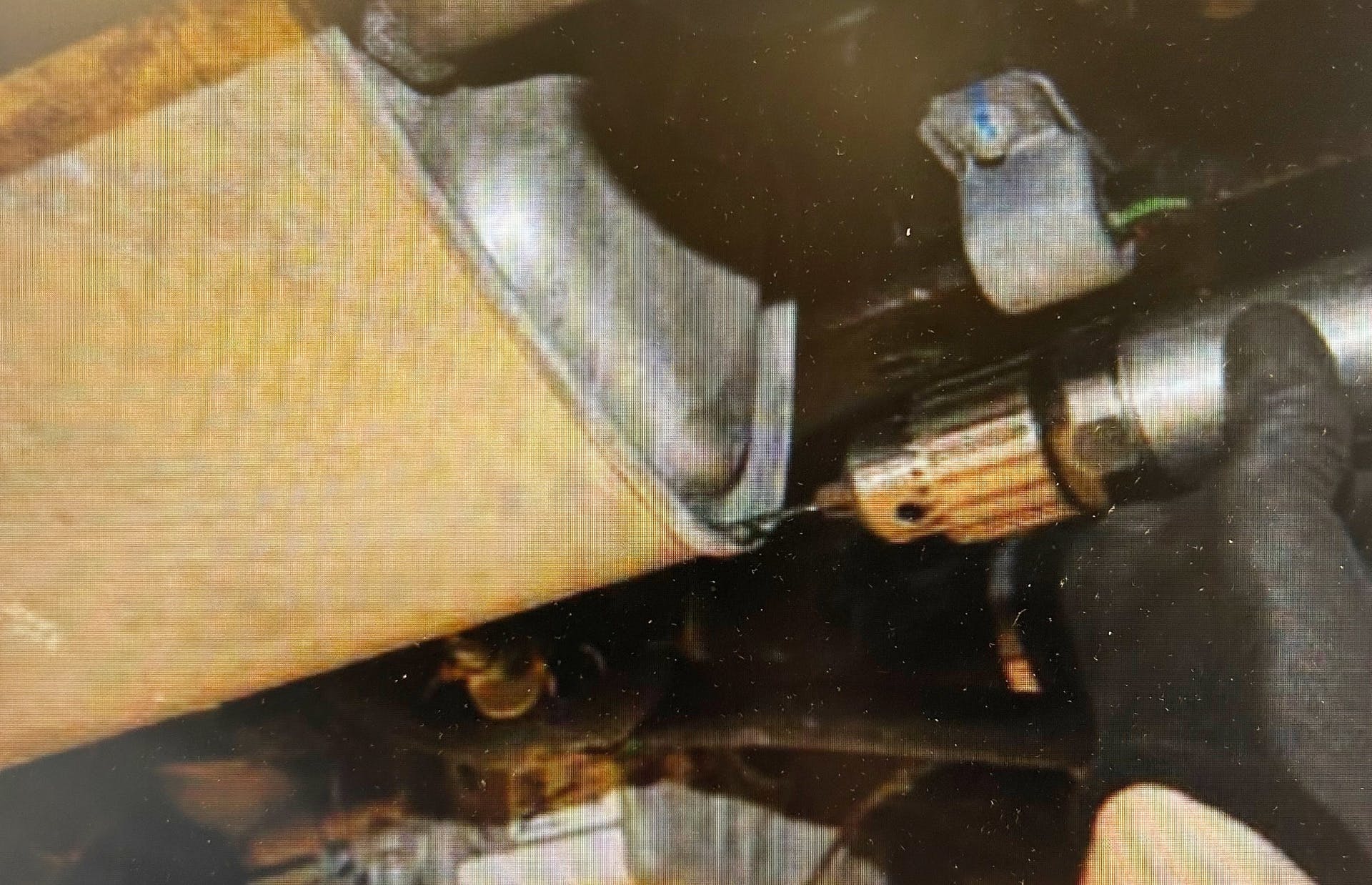

    If no weep hole is already present, drill a 1/8-inch hole into the lower rear corner as shown. Do not drill deeper than one inch.
    If no weep hole is already present, drill a 1/8-inch hole into the lower rear corner as shown. Do not drill deeper than one inch.

    Some owners of 2019-2020 Jeep Renegade, 2017-2018 Compass and 2015-2018 Renegade vehicles may describe a crank-no-start condition in freezing temperatures.

    This condition can be caused by condensation freezing in the muffler assembly as a result of no weep hole in the muffler. Examine the muffler. If there is no weep hole at the end of the muffler, use a 1/8-inch drill bit to drill a weep hole no deeper than one-inch into the muffler assembly at the bottom lower corner.

    About the Author

    Information courtesy of Mitchell 1

    Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
