Correcting Chevy Colorado Rear Axle Assembly

    Oct. 27, 2023
    Certain 2017 Chevy Colorado trucks equipped with a 3.42 gear ratio rear axle may have been built with an incorrect rear axle assembly.
    Chevrolet

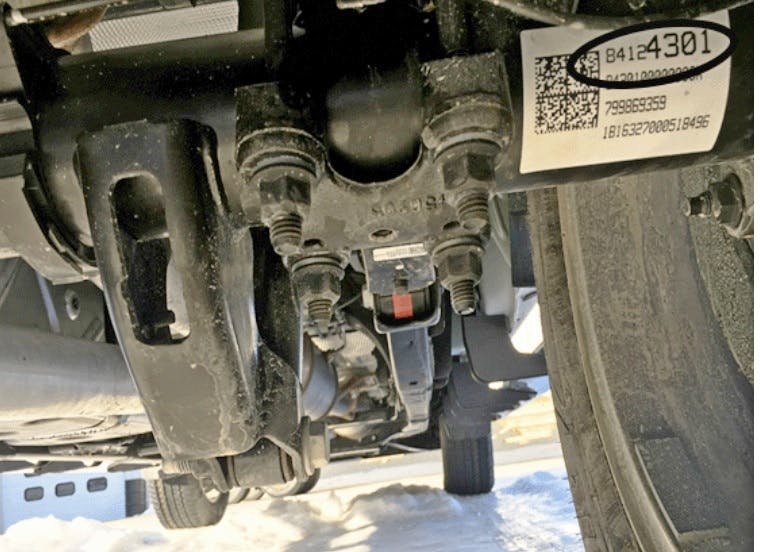

    Example of rear axle serial number location. This is a view from the rear right side.
    Example of rear axle serial number location. This is a view from the rear right side.

    Certain 2017 Chevy Colorado trucks equipped with a 3.42 gear ratio rear axle may have been built with an incorrect rear axle assembly. This may cause an unintended deceleration or lock up at low speeds when shifting into 4WD and an improper odometer reading.

    Chances are this concern would probably have been identified and corrected early on, but you never know. Inspect the part number on the right tube of the rear axle assembly.

    If the part number is 84124298, no further action is required. If the part number is 84124301, replace the rear axle assembly.

    About the Author

    Information courtesy of Mitchell 1

    Information for Technical Service Bulletins comes from ProDemand, Mitchell 1's auto repair information software for domestic and import vehicles. Headquartered in San Diego, Mitchell 1 has provided quality repair information solutions to the automotive industry since 1918.
