Correcting Mazda3 surge

Dec. 17, 2024

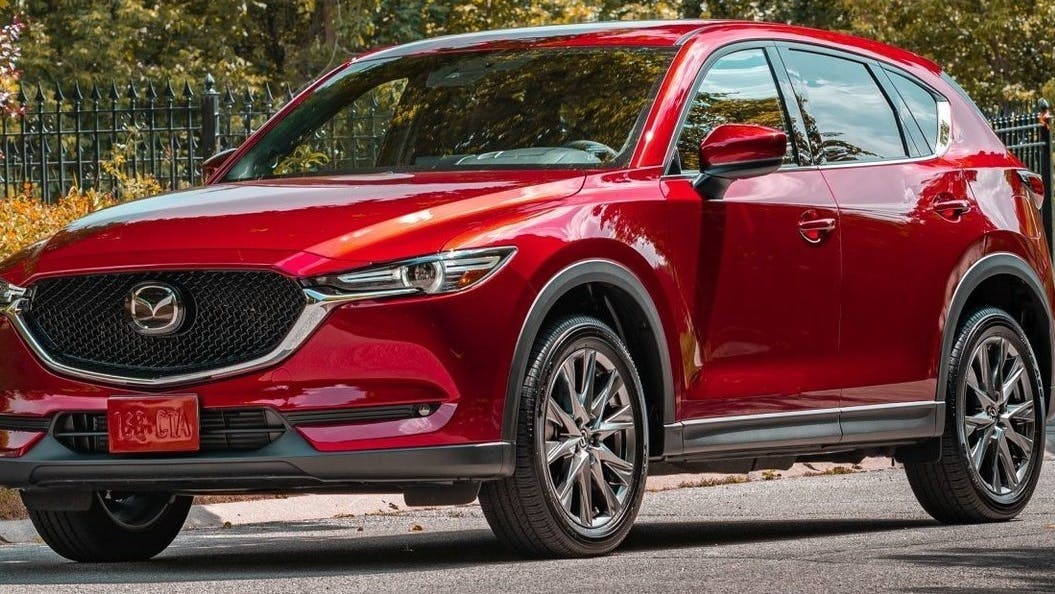

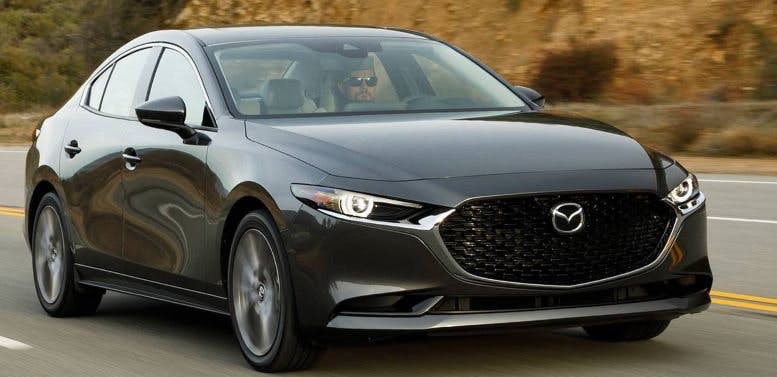

This bulletin applies to 2019-2020 Mazda3 built in Japan before Jan. 11, 2020, and 2018-2020 CX-5 vehicles built before July 20, 2020, with cylinder deactivation.

Mike Mavrigian

Related To: Mitchell 1

This bulletin applies to 2019-2020 Mazda3 built in Japan before Jan. 11, 2020, and 2018-2020 CX-5 vehicles built before July 20, 2020, with cylinder deactivation.

Some customers may complain about surging at low speeds and during acceleration. This surging is in the longitudinal direction (fore/aft), felt about two cycles per second and occurs in the locked up first gear.

This may be caused by the torque fluctuation and the torsional resonance in the torque converter. To correct this concern, the PCM software has been modified to reduce the torque fluctuation. Reprogram the PCM with the latest software.
