This bulletin applies to 2019-2021 Volkswagen Arteon, 2020-2021 Atlas Cross Sport, and 2018-2021 Atlas and Tiguan vehicles. A fluid leak may be observed at the front of the vehicle.

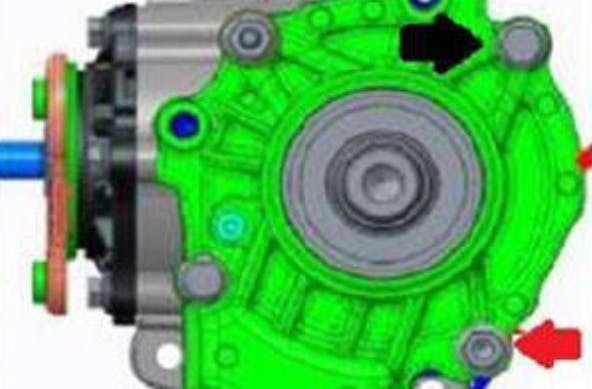

Notice the two bolts (see arrows). The leak is likely between those two bolts.
This bulletin applies to 2019-2021 Volkswagen Arteon, 2020-2021 Atlas Cross Sport, and 2018-2021 Atlas and Tiguan vehicles. A fluid leak may be observed at the front of the vehicle.
This may be an oil leak from the bevel box case halves. The leak source is between the case halves at the right side of the bevel box, between the two bolts shown in the following image.
Photo courtesy of Mitchell 1

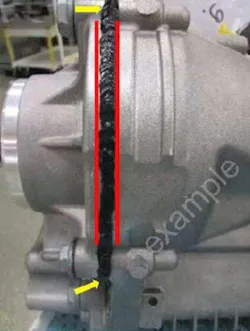

Remove old exterior sealant and apply silicone sealant P/N D 174 003 M2 in the area shown here between the red lines and the yellow arrows. Apple a bead 10mm wide and 3mm high.
Photo courtesy of Mitchell 1

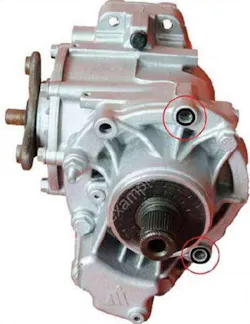

Apply a continuous bead of sealant around the two bolt hole locations.
An improved bevel box design was used starting in vehicle production as of March 26th, 2021. If the bevel box leak is confirmed to be from between the case halves, remove the bevel box per ElsaPro instructions. Clean the exterior of the bevel box of any leaked gear oil using a residue-free cleaner. Remove old sealant from the exterior of the bevel box in the area where new exterior sealant will be applied. A razor or scraper can be used to remove old sealant from the surfaces. Apply silicone sealant D 174 003 M2 to the area. Also remove the two bolts and apply silicone sealant at the two bolt hole locations. Allow the sealant to cure for at least two hours and reassemble.
